Ruby Mixing Console

Radio never looked so good.

Meet ruby. Intuitive. Uncluttered. Powerful — yet so refined. Designed for flawless networking. With AutoMix smart mixing and a context-sensitive GUI. No other console is this smart. Smooth, sleek, and German-engineered. The AoIP console you’ve been waiting for.

Simply striking.

When you’re live, there’s no time to search for the right control. No room for errors, either. Beneath Ruby’s svelte surface lie color-programmable  visual cues, context-sensitive displays and custom workflow options. All to help ensure that your hands always find the control you need, first time — every time.

Thin is in.

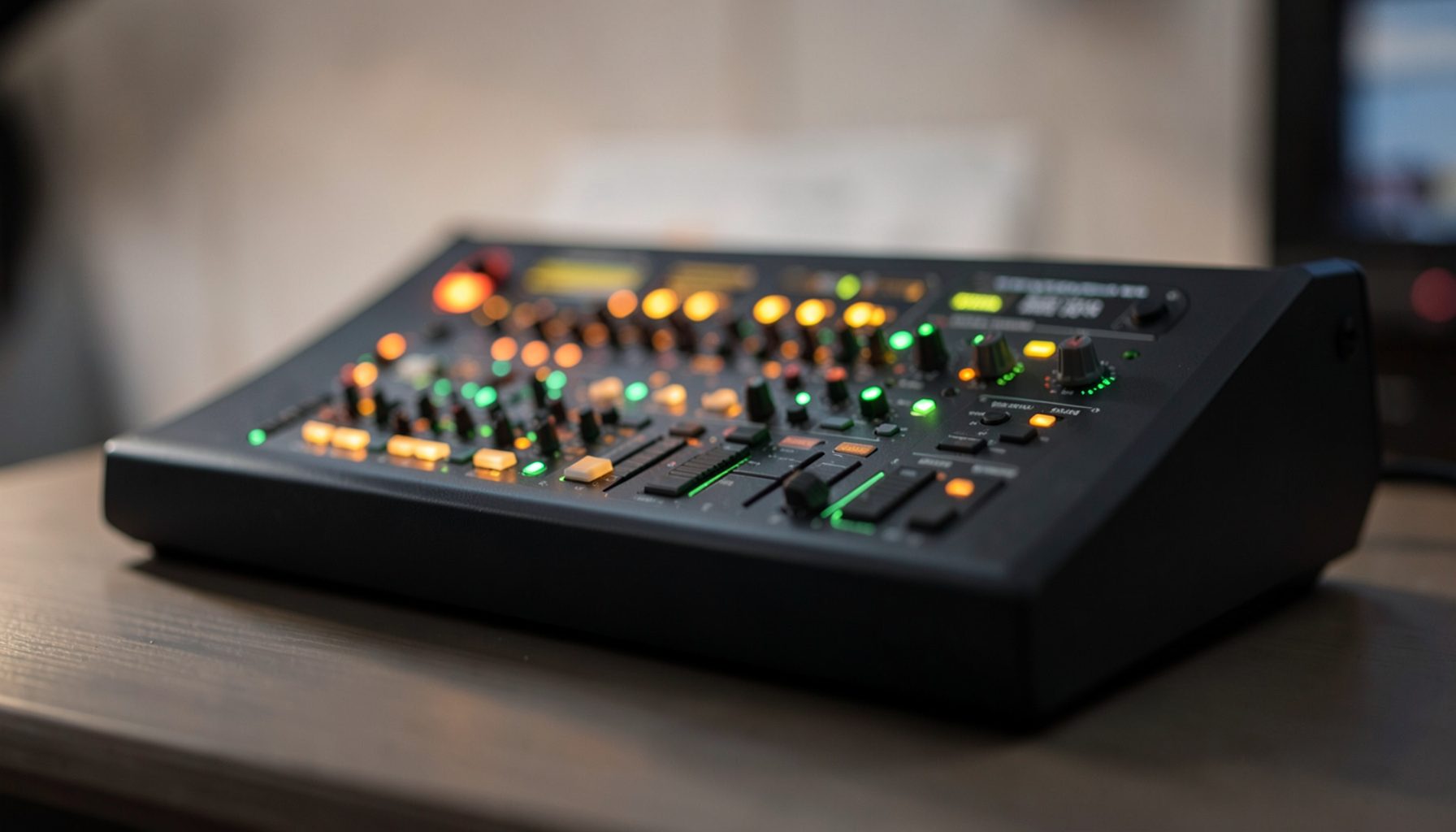

Streamlined from every angle. All killer, no filler. Optimized controls — everything you need, nothing you don’t. Only 5 cm (2″) tall, from the bottom of its exquisitely cast side frames to the tops of its rotary selectors.
Slim, trim, and as sharp as the cutting edge.

Good design goes beyond good looks. Ruby controls are perfectly placed. They fall to hand naturally, easily. Designed for speed. Designed for accuracy. Premium-grade displays, faders, switches.
Because there’s no such thing as too much uptime.

Context-sensitive GUI

Virtual control.

Welcome to your command cockpit. Graphical, intuitive, customizable. So much more than just meters and a clock. No hunting for buried options: multi-touch controls instantly give what’s needed. Control studio devices. Tweak dynamics. Adjust virtual faders. Add true loudness metering. The possibilities are virtually limitless.

Finally. AoIP done right.

Everybody’s buzzing about AES67. And for good reason. Finally there’s a real standard for connecting together IP equipment from different manufacturers. This is why Ruby is 100% AES67-compliant. Some purveyors of proprietary protocols claim AES67 is incomplete — but we pair it with RAVENNA, the standards-based advertising and discovery protocol with AES67 compliance baked in. With Ruby, you can connect and control any studio hardware or software you choose, from the ever-expanding AES67 / RAVENNA universe.

Here are more broadcast companies who believe open standards are the only way to go.

Finally. AoIP done right.

Everybody’s buzzing about AES67. And for good reason. Finally there’s a real standard for connecting together IP equipment from different manufacturers. This is why Ruby is 100% AES67-compliant. Some purveyors of proprietary protocols claim AES67 is incomplete — but we pair it with RAVENNA, the standards-based advertising and discovery protocol with AES67 compliance baked in. With Ruby, you can connect and control any studio hardware or software you choose, from the ever-expanding AES67 / RAVENNA universe.

Here are more broadcast companies who believe open standards are the way to go.

Meet Power Core

Mighty. Small.

Feast your eyes on pure power. Redundant IP networking. Dual-redundant power capability. Tons of built-in I/O, with room for even more. Dozens of DSP channels. It’s like 12 rack units of power, packed into only 1RU. Enough power to accomplish any task. Even the ones you haven’t thought of yet.

I/O forever.

Base I/O includes four HD MADI ports and two AES67 connections. That’s a staggering 384 channels of stereo audio, standard. Want more? Rear-panel slots are waiting to accept up to eight more mic, line, digital, MADI, and Dante I/O modules.

DSP for days.

Power Core is a signal-processing superhero. Use DSP channels to apply parametric EQ, shelf, and bandpass filters. Gate, limit, expand, compress, and de-ess to your heart’s delight. Up to 96 channels of DSP processing! Overkill? Not when you’re the pro who needs it.

Each channel equipped with input gain, direct out, insert, Aux send and more. EBU R128 loudness metering, too.

Use as Program, Record, Aux, Group, Mix-Minus or general purpose. Apply DSP to as many as 32 mono / 16 stereo busses.

Available with as many as 1920 x 1920 routing crosspoints, with instant access to all audio sources, networked or local.

A trio of tiered software licence packs let you optimize DSP, bus and routing capacities to fit your station’s unique needs.

* Indicates maximum available resources based on configuration choices. See Feature Chart for details.

Expand. Customize. Connect.

Power Core has an amazing amount of HD MADI and AES67 I/O. And you can add even more. 8 expansion slots accept available mic, line, AES3, MADI, Dante, and Studio I/O cards. It’s the most flexible mixing engine ever.

The DSP difference.

You’d need 24 regular consoles to equal the DSP in Power Core. Why so much? Advantages like Lawo AutoMix, for one. Assign up to 32 signals – stereo or mono – to AutoMix. Then watch the magic as levels are perfectly, dynamically managed faster than hands can move. Your talk shows never had it so good.

German. Quality.

Ruby: designed and built by skilled engineers in Rastatt, Germany. Legendary German quality. Premium components. The highest standards. Meticulous precision. Powerful. Reliable. Rock-solid, 24/7.
Lawo craftsmen. For them perfection isn’t a goal — it’s a way of life.
